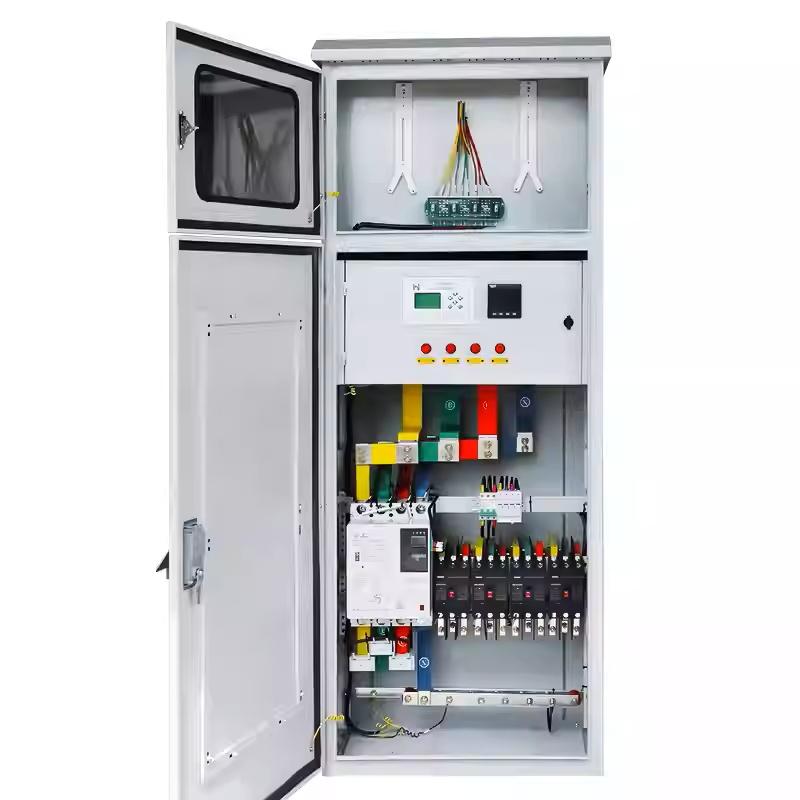

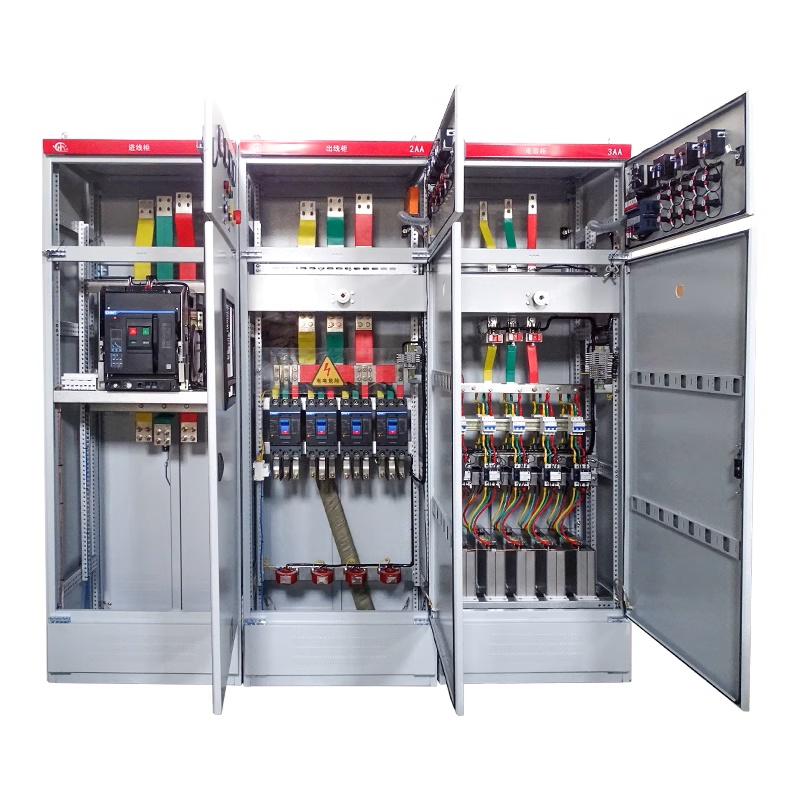

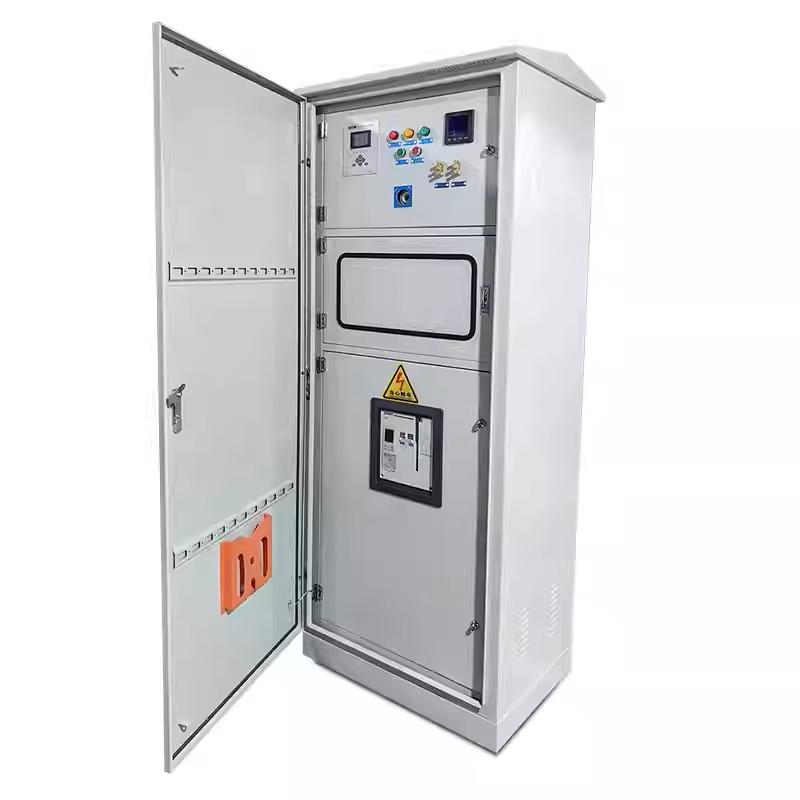

GGD Type AC Low-Voltage Distribution Cabinet

The GGD type AC low-voltage distribution cabinet is suitable for power distribution systems of power plants, substations, industrial and mining enterprises, and other electrical users with an AC frequency of 50Hz, a rated operating voltage of 380V, and a rated operating current up to 3150A. It is used for the conversion, distribution, and control of electrical energy for power, lighting, and distribution equipment.The product features high breaking capacity, good dynamic and thermal stability, flexible electrical schemes, convenient combination, a range of series, strong practicality, innovative structure, and protection level characteristics, making it suitable for use as an updated replacement for low-voltage complete switchgear equipment.

Safety: The design complies with safety standards, providing reliable electrical protection.
Economy:It offers high cost-effectiveness, suitable for a variety of power users and design requirements.
Rationality:The structural design is rational, facilitating easy installation and maintenance.
Reliability: Equipped with high-quality electrical components to ensure stable operation.
Breaking Capacity:It features high breaking capacity to safeguard circuit safety.
Flexibility:The electrical schemes are flexible and can be combined according to different needs.
Practicality: It is highly practical and applicable to various working environments.
Innovative Structure:Adopts a new structural design with an aesthetically pleasing appearance.
Protection Level:Typically has a high level of protection, such as IP30.

Product Consultation

Function

Parameters

Downfile

Advantages/Key Features

1 Superior Performance

The design complies with safety standards and uses high-quality electtrical components to ensure stable operation. It is suitable for a variety of working environments and is cost-effective

2 High Protection Rating

It usually has a high protection rating, such as IP30. It has functionins like dust-proof and fog proof, meeting the requirements for outdoor installation

3 Flexible Customization

The enclosure material, size, and other functions can be customized according to customer requirements

Model	GGD
Electrical Parameters
Rated Voltage	400VAC/690VAC
Insulation Voltage	1000VAC
Frequency	50Hz/60Hz
Max Number of Input Circuits	10	6	5
Rated Current	200A/250A	250A/400A	400A/630A
Max Number of Output Circuits	1	1	1
Max Switch Output Current	2000A	2500A	3150A
Surge Protective Device	T2/T1+2, In=20kA, Imax=40kA
General Parameters
Enclosure Material	SPCC
Dimensions (W×H×D)	100022001000mm
Protection Level	IP40
Operating Temperature/Humidity	Temperature: -20°C ~ +60°C, Humidity: 0-95%
Altitude	≤2000m
Mounting Method	Floor Stand
