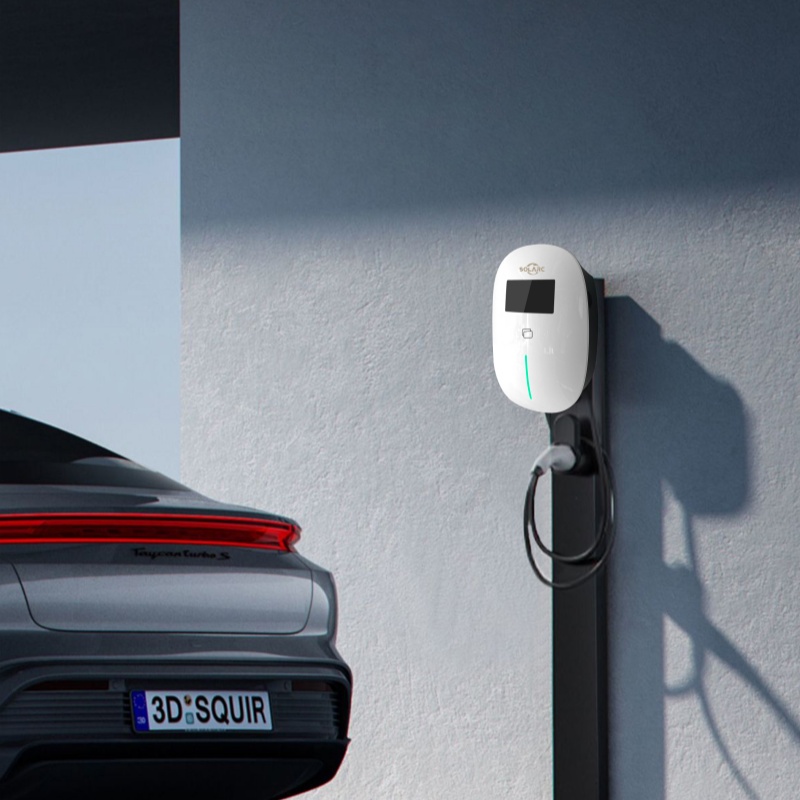

SCP-22S AC Charging Pile(CC Style)

The SCP-22S AC charging station is equipped with a high-precision metering module. It is suitable for both residential and commercial use, and can be paired with a network communication module to connect to a management platform based on the Open Charge Point Protocol (OCPP). It supports plug-and-charge, scheduled charging, card swiping, QR code scanning, Bluetooth connection, Wi-Fi connection, and 4G connection for charging initiation. The charging station integrates various protective functions, including emergency stop detection, door opening detection, overvoltage, undervoltage, overcurrent, undercurrent, CP pin breakage, and CP grounding protection, and is committed to providing users with high-quality charging solutions.

Power Supply Conditions: 220V/380±20%, frequency 50Hz/60Hz.
Output Power: Offers multiple power options including 3.5kW, 7kW, 11kW, and 22kW.
Communication Methods: Equipped with 485, 232, and CAN communication interfaces, supporting various communication protocols.
Communication Functions: Supports four types of network connections: Ethernet, 4G, Bluetooth, and Wi-Fi, with backend communication capabilities. It allows remote monitoring of the main control board through the backend and supports the OCPP1.6 protocol.
Activation Methods: Supports multiple activation methods including VIN code red dot, card swiping, QR code scanning, and scheduled charging.
Protection Level: Achieves an IP54 rating, offering good waterproof and dustproof performance.
Environmental Conditions: Adapts to a temperature range of -40℃ to 85℃, relative humidity of 5% to 95%, and an altitude of ≤2000m.

Product Consultation

Function

Parameters

Downfile

Advantages/Key Features

1 Strong applicability

The protection level reaches IP54, with dust-proof, waterproof and other functions, suitable for temperature range of -20 ℃~60 ℃, relative humidity of 5%~95%, altitude ≤ 2000m

2 Remote monitoring

Supports four networking methods: Ethernet, 4G, Bluetooth, and WiFi. It has backend communication function and can remotely monitor the main control board through the backend. It also supports OCPP1.6 protocol

3 Power optional

Provide multiple power options such as 3.5kW, 7kW, 11kW, 22kW, etc

Model	SCPS-3.5S	SCPS-7S	SCPS-11S	SCPS-22S
Electrical Parameters
Rated Voltage	220VAC+10%	220VAC+10%	380VAC±10%	380VAC+10%
Frequency	50Hz/60Hz
Input Current	0~16A	0~16A	0~32A	0~32A
Rated Power	3.5KW	7KW	11KW	22KW
External Meter Interface	Supported Rs485 Communication Protocol
Leakage Detection	Optional Type A+DC6mA
Network Communication Interface	Optional,Ethernet/4G/Bluetooth/wifi
General Parameters
Style and Color	CC Style/White/Red/Silver/Blue Gray/Gray/Lake Green
Enclosure Material	PC
Dimensions(WHD)	200300120mm
Protection Level	IP65
Operating Temperature/Humidity	Temperature: -20°C ~ +60°C, Humidity: 0-95%
Altitude	≤2000m

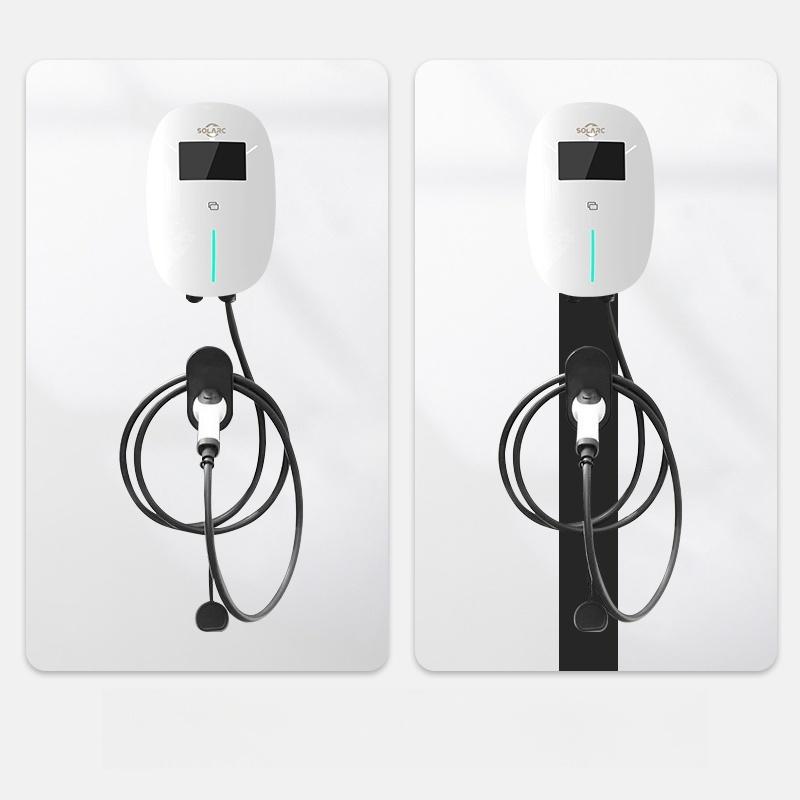

Mounting Method	Wall-Mounted/Floor Stand
Model	SCPT-3.5S	SCPT-7S	SCPT-11S	SCPT-22S
Electrical Parameters
Rated Voltage	220VAC+10%	220VAC+10%	380VAC±10%	380VAC+10%
Frequency	50Hz/60Hz
Input Current	0~16A	0~16A	0~16A	0~32A
Rated Power	3.5KW	7KW	11KW	22KW
External Meter Interface	Supported Rs485 Communication Protocol
Leakage Detection	Optional Type A+DC6mA
Network Communication Interface	Optional,Ethernet/4G/Bluetooth/wifi
General Parameters
Style and Color	CC Style/White/Red/Silver/Blue Gray/Gray/Lake Green
Enclosure Material	PC
Dimensions(WHD)	200300120mm
Protection Level	IP65
Operating Temperature/Humidity	Temperature: -20°C ~ +60°C, Humidity: 0-95%
Altitude	≤2000m
Mounting Method	Wall-Mounted/Floor Stand
