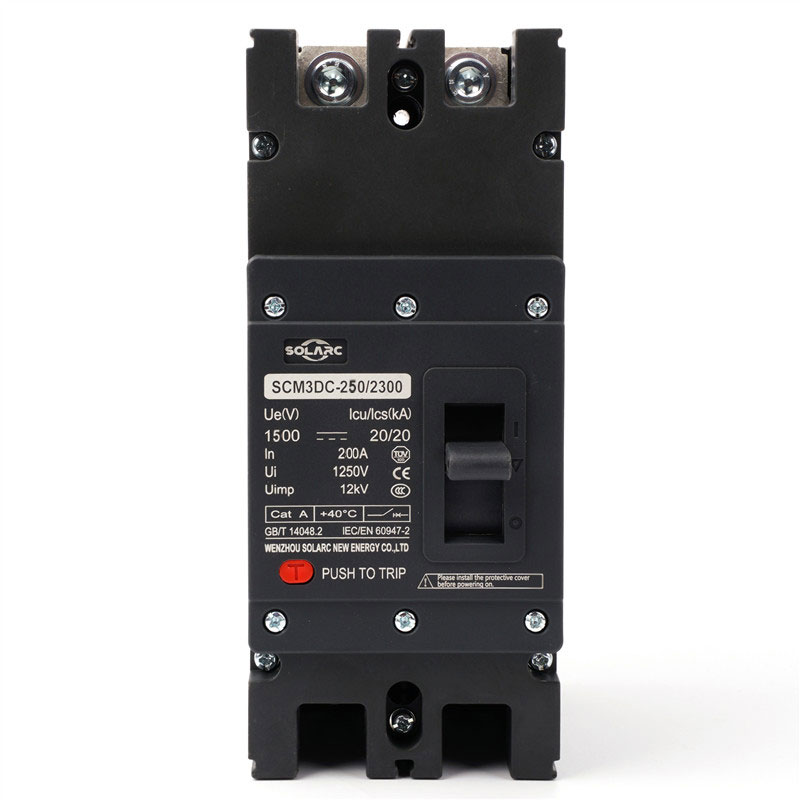

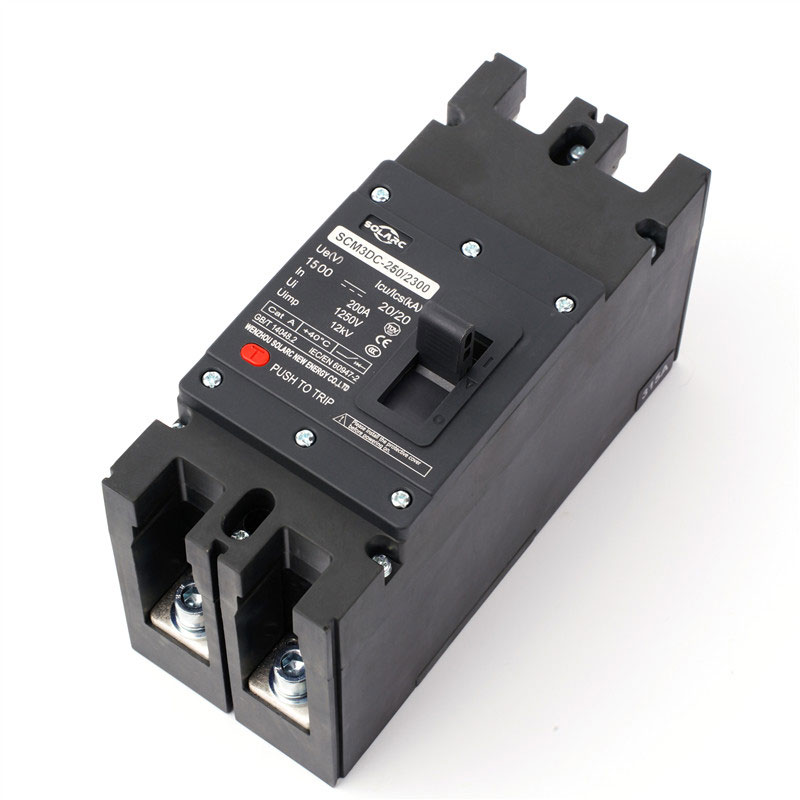

SCM3DC-250/2300 DC1500V DC MCCB

Function

Parameters

Downfile

Advantages/Key Features

1 Superior Performance

The rated working voltage can reach DC1500V, which is compatible with higher voltage distribution systems

2 Safety and Reliability

The dual insulation design is adopted to enhance the product's insulation performance and operational safety

3 User-friendly

The modular installation of accessories effectively reduces the variety of spare parts that customers need to stock

SHELL FRAME		SCM3DC-125			SCM3DC-250
Number of poles		2			2		3
Rated working voltage Ue(V)		DC250	DC500	DC750	DC500	DC1000	DC1500
Rated insulation voltage Ui(V)		DC1250			DC1250		DC1500
Rated impulse withstand voltage U(kV)		8			8		12
Rated current In(A)		63, 80, 100, 125			63,80,100,125,140,160,180,200
Icu(kA)	H	40	20	10	35	15	15
	R	40	20	10	/	/	/
Ics(kA)		Ics=100%Icu
Mode of connection		Top in bottom out， bottom in top out （2P,250/3P) Bottom in bottom out,top in top out (3P)
Use classes		A
Whether it has an isolation function		yes
Ambient temperature		-35°C~+70°C
Mechanical life (times)		20000			10000
Electrical life (times)		3000	2000	1500	1000	700	500
Meet a criterion		IEC/EN 60947-2, GB/T 14048.2
Attachment		Separate excitation, Assistance, Alarm, Manual operation, Electrical Operation
Authentication		CCC, CE, TUV
Dimensions (Length × Width × Height)		150x64x95(2P)			180×76×165126 (2P)、 180×107×165 (3P)

Note: 250 shell frame does not distinguish H: high breaking capacity, R: current-limiting type.
