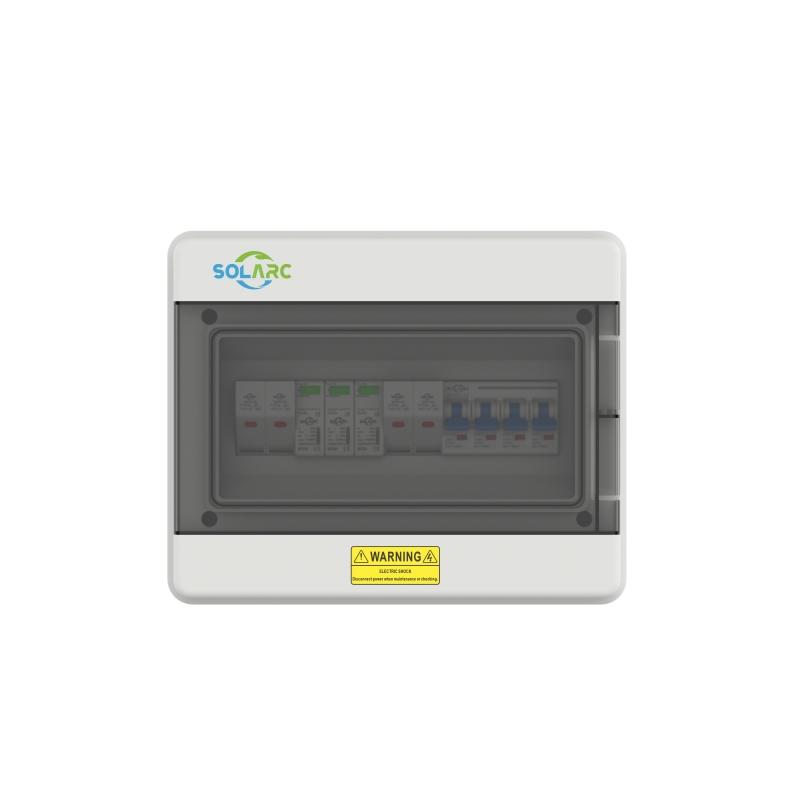

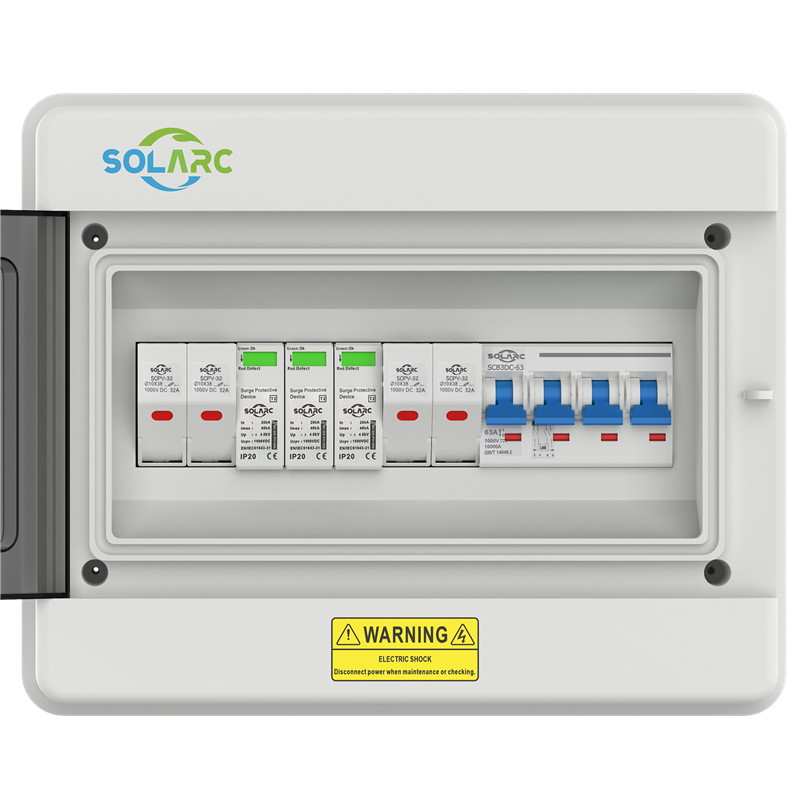

SCP-2/1 PV Combiner Box

The Solarc SCP-X/Y PV combiner box is designed with a maximum input voltage of DC 1500V, making it compatible with photovoltaic inverters to form a complete photovoltaic power generation system solution. By connecting photovoltaic arrays through the combiner box, the number of cables between photovoltaic strings and inverters is reduced, lowering system costs and enhancing system reliability. With the use of a photovoltaic combiner box, users can group a certain number of identical photovoltaic modules into an array based on the DC voltage range acceptable to the inverter. Several strings can then be connected to the combiner box, and the output is facilitated through a surge protector and circuit breaker, simplifying the connection to centralized inverters.

High Protection Rating:The sealed IP65 enclosure provides superior protection against dust, moisture, and harsh weather conditions, ensuring long-term reliability in outdoor environments.
Multi-String Input: Capable of simultaneously connecting multiple photovoltaic module strings, each equipped with a dedicated photovoltaic fuse to ensure safety in the event of a string failure.
Intelligent Monitoring: Incorporates an internal monitoring module, utilizing high-end MCU processors and current/arc sensors. Data monitoring can be performed locally or remotely via the RS485/ModBus-RTU communication protocol.
High-Voltage Surge Protection: Equipped with a photovoltaic-specific high-voltage surge protector, providing protection for the positive and negative poles of the busbar to ground after current combination, with a continuous operating voltage of up to 1500VDC.
Flexible Customization: Can be customized according to user requirements for box material, size, and other functions, offering private-label customization options.

Product Consultation

Function

Parameters

Downfile

Advantages/Key Features

1 High Protection Rating

The protection rating reaches IP65, which provides dustproof, moissture-proof, and salt fog proof functions, meeting the requirements for outdoor installation

2 Reliable Structure

It can simultaneously connect multiple strings of photovoltaic modules, each equipped with a dedicated photovoltaic fuse to ensure safety in case of string failure

3 Flexible Customization

The enclosure material, size, and other functions can be custormized according to customer requirements

Model	SCP-2/1	SCP-4/2	SCP-6/3
Electrical Parameters
Max input Voltage	1000VDC/1500VDC
Max Number of input Circuits	2	4	6
Rated Current of Fuse	20A/25A/30A	20A/25A/30A	20A/25A/30A
Max Number of Output Circuits	1	2	3
Max Switch Output Current	63A	63A	63A
Surge Protective Device	T2/T1+2, In=20KA, Imax=40KA
Power Supply Mode of Monitoring Device	Photovoltaic Self-Power Supply/Optional Equipment
Communication Mode Protocol	RS485/Optional Equipment
General Parameters
Enclosure Material	PC/ABS/SPCC/SS
Dimensions (W×H×D)	280×230×120mm	280×393×120mm	388×393×120mm
Protection Level	IP65
Operating Temperature/Humidity	Temperature: -20°C ~ +60°C ，Humidity: 0-95%
Altitude	≤2000m
Mounting Method	Wall-Mounted
